The TUI
plugii watch (or plugii -w) is the report kept live. It rescans the
machine on every udev event from the usb, typec, power_supply, drm
and thunderbolt subsystems (a plug comes as a burst, so it waits for
150 ms of quiet, at most 500 ms) and once a second otherwise, for the CPU,
power and URB counters. The kernel log is read on plug events and every
10 seconds.
The keys are vim-first and the arrow keys always work too: the keymap lists every one, and ? shows them in the TUI.
The top line
Ports │ Charts │ Events daisy updated 12:00:00The tabs (1 2 3, gt /
gT, Tab), the host name, and on the right
the status: when the last scan was taken, or PAUSED after p
(updates are held, not lost: they all apply on resume). Keys typed so far
(g, ^W, :q), the active filter (/hub), ● REC file while
recording, and the label wizard’s outcome show there too.
Ports
Ports │ Charts │ Events unknown updated 12:00:00
┌ Sockets ─────────────────────────────────────────────────┐┌ USB-C / PD ──────────────────────────────────────────────┐
│─ USB-A (right) ───────────────────────── 0000:05:00.4-1 ─││port0 · USB-C (caps lock) partner │
│ USB 3 idle ││ PD · charging · cable passive │
│ USB 2 idle ││ offers not reported │
│─ USB-A (left) ────────────────────────── 0000:05:00.4-2 ─││port1 empty │
│ USB 3 idle │└──────────────────────────────────────────────────────────┘
│ USB 2 idle │┌ Power ───────────────────────────────────────────────────┐
│─ USB-C (hinge) ───────────────────────── 0000:06:00.3-1 ─││AC online │
│ USB 3 linked ││USB-C port0 (USB-C (caps lock)) — power level not │
│ ▾ 5G 05e3:0626 USB3.1 Hub ││ reported (drawing 2.75 A) │
│ 5G 0b95:1790 AX88179B ││Battery 80% Not charging (limit 80%) │
│ USB 2 linked ││CPU no sample │
│ ▾ 480M 05e3:0610 USB2.1 Hub │└──────────────────────────────────────────────────────────┘
│ 480M 05e3:0608 USB2.0 Hub │┌ Health ──────────────────────────────────────────────────┐
│─ USB-C (caps lock) ───────────────────── 0000:06:00.4-1 ─││✓ USB 3 links up (SuperSpeed lanes working) │
│ USB 3 idle ││✓ USB-C status driver (UCSI) up: 2 port(s) │
│ USB 2 idle ││✓ charging power arriving via USB-C port0 (USB-C (caps │
│ USB-C partner (port0) · charging ││ lock)) — power level not reported (drawing 2.75 A; │
│ └ no USB data, no DisplayPort (charger only?) ││ charger's offers not reported) │
│ ││✓ kernel log clean │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
│ ││ │
└──────────────────────────────────────────────────────────┘└──────────────────────────────────────────────────────────┘Sockets, on the left, is the report’s USB ports section as a list you
move through: a card per socket (─ label ──── key ─), its USB 3 and USB 2
halves, the device tree under each, and the USB-C partner. Speed badges are
coloured like the TUI’s terminal palette shows them: green for a
SuperSpeed link (5G and up), yellow below it, red for a hub stuck
at USB 2. Hubs fold: h / l on a hub collapse and
expand it (▸, with (+N) devices hidden).
On the right, three panels that scroll:
- USB-C / PD: each UCSI port and its partner, PD, charging, cable, every source PDO with the active one highlighted, and the contract.
- Power: AC and which USB-C port feeds it, the battery (with its flow in watts), and the CPU line.
- Health: the findings, with your vendor’s advice.
Ctrl-w h/j/k/l move the focus between panes; h / l do too when the row isn’t a hub. Below 100 columns the panels go under the sockets.
Flash
A socket whose state just changed (something plugged, unplugged or relinked) is highlighted for 2 seconds, so you see where a plug landed.
Ghosts
An unplugged device stays in its socket’s tree for 30 seconds, dim and
struck through, its top row marked (gone): you can still see what was
there and open its details. A ghost goes as soon as the same device (same
sysfs name and vid:pid) comes back.
The filter
/ opens a prompt; what you type filters the tree as you type, by vid:pid, product, manufacturer or label, ignoring case. The socket titles stay, the matching devices and the hubs above them stay, the matches in bold. ⏎ applies it, Esc cancels it (and clears the filter); n / N jump to the next and previous match. On the Events tab, the same prompt filters event lines.
The detail view
⏎ or o opens the selected device’s details in a popup (j/k scroll it, Esc or q close it):
┌ 0b95:1790 AX88179B ──────────────────────────────────────┐
│ vendor:product 0b95:1790 │
│ label — │
│ manufacturer ASIX │
│ product AX88179B │
│ serial REDACTED │
│ driver cdc_ncm │
│ bcdUSB 3.20 │
│ device class 00 (per interface) │
│ bMaxPower 184 mA │
│ lanes rx 1 · tx 1 │
│ urbnum 486 │
│ │
│ sysfs name 7-1.2 │
│ socket USB-C (hinge) (0000:06:00.3-1) │
│ half USB 3 (bus 7, root port 1) │
│ path 7-1 › 7-1.2 │
│ via 05e3:0626 USB3.1 Hub │
│ │
│ linked at 5G (USB 3 Gen 1) │
│ capable of 5G (USB 3 Gen 1) │
│ capable vs linked linked at its best speed (5G) │
└──────────────────────────────── Esc/q close · j/k scroll ┘On a socket’s title or half rows it shows the socket instead: both halves with their bus and root port, the device on each, the port state, the over-current count, ACPI’s physical location (a hint only: labels win over it, and on some machines every socket says “left”), and the USB-C port.
Capable vs. linked
A device’s BOS descriptor says the fastest speed it supports (SuperSpeed, SuperSpeedPlus, the lane count). plugii compares it with the speed it linked at:
| The detail view says | Meaning |
|---|---|
linked at its best speed (5G) | Nothing holds it back. |
10G capable, linked at 5G → cable or hub limiting | Something in between is slower: a 5G hub, a USB 2 cable, a port that can’t do more. The tree marks the badge with a dim ↓. |
USB 2 half of a USB 3 hub (its USB 3 half is linked) | Normal: a USB 3 hub’s USB 2 side carries the same descriptor and reads “capable 5G, linked 480M” while healthy. |
can't be told: … | A slow USB 2 device without a BOS descriptor; it may be full-speed only. |

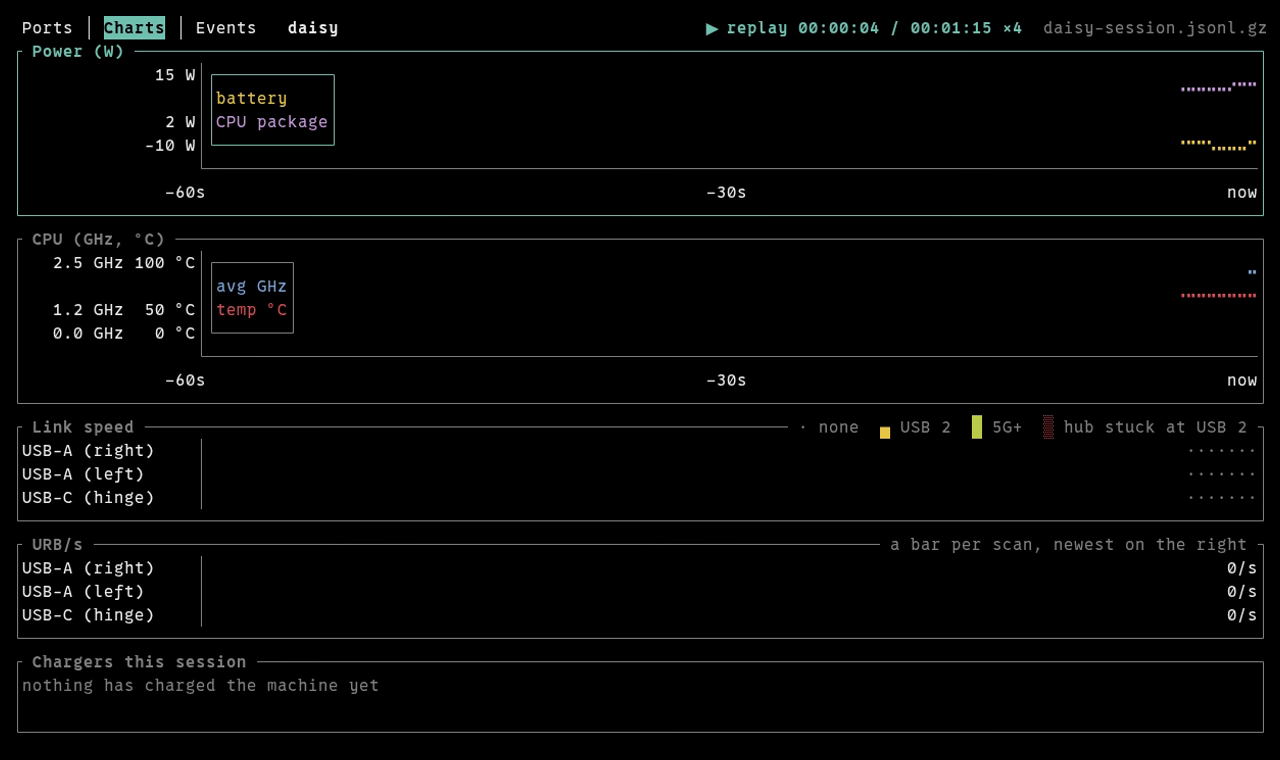

Charts
The Charts tab puts power and CPU on one time axis, up to the last 10 minutes, with a vertical marker at every plug and unplug:
- Power (W): the USB-C PD contract, the battery flow (negative while discharging) and the CPU package power.
- CPU (GHz, °C): the average clock and the package temperature.
Under them, on the same time axis or as a running window:
- Link speed: a strip per socket, a cell per moment, by the faster
half’s link:
·nothing,▄USB 2,█5G or more,▒a hub stuck at USB 2. A dock that comes up on its USB 2 half first and then links at 5G draws▒▒▒████. - URB/s: USB request blocks per second per socket, as a sparkline with the newest on the right and the current rate: whether a device behind a port is actually moving data.
- Chargers this session: a row per charger you’ve plugged in this
session (the same charger replugged keeps its row), the one charging now
marked
●:
Charger Port Negotiated CPU max Pkg max Resets Charging
not reported USB-C (caps lock) drawing 2.75 A 4.2 GHz 28 W 3 29s
● not reported USB-C (caps lock) drawing 3.25 A 2.1 GHz 10 W 0 34sIts best offer, what was negotiated, the highest CPU clock and package watts seen while it charged, the link resets that happened meanwhile, and for how long. It answers “which of my chargers lets this laptop run at full speed?”: plug each in, run a build, compare. On a short terminal the lower panes shrink and scroll; Ctrl-w j pages to them.
Events
Ports │ Charts │ Events unknown updated 12:00:00
┌ Events ──────────────────────────────────────────────────────────────────────────────────────────┐
│11:59:20 + charger on USB-C (caps lock) │
│11:59:21 ~ AC online, battery Not charging │
│11:59:35 + 05e3:0626 hub @5G on USB-C (hinge) │
│11:59:48 ! link reset on USB-C (hinge) │
│11:59:55 − 046d:c52b Unifying Receiver @12M on USB-A (left) │
│ │
│ │
│ │
│ │
└──────────────────────────────────────────────────────────────────────────────────────────────────┘Every change between two scans, with its time:
| Sign | Kind | Examples |
|---|---|---|
+ | plugged in, appeared | a device with its speed and socket, a charger, a Thunderbolt device, a display |
− | unplugged, gone | the same going away; a labelled hub leaving is one line: − USB switch (desk): 6 devices left |
~ | changed | link speed, PD contract, charging, AC, Thunderbolt authorization |
! | went wrong | a new kernel error line, link resets on a socket |
Battery percentage and the current a supply draws move all the time, so they aren’t events. The list follows the newest event until you move up, keeps the last 1000, and c clears it.
Labels
L on the Ports tab names the selected socket or device and writes it to the labels file: see Labels.
In a replay
plugii replay plays a recording in this same TUI, with the recorded times
on the events and charts: see Record and replay.
